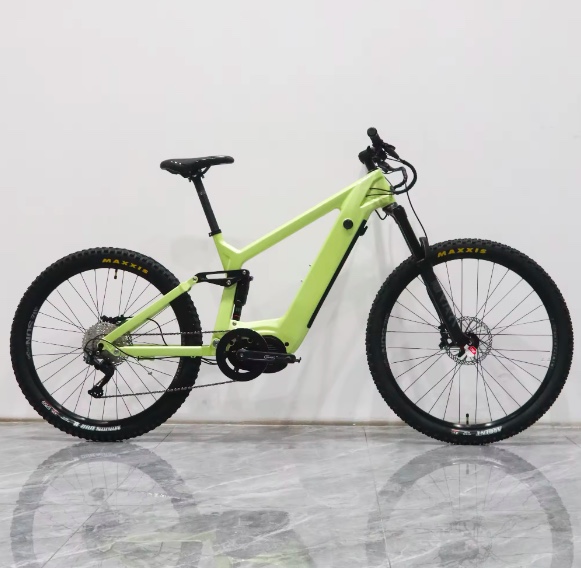

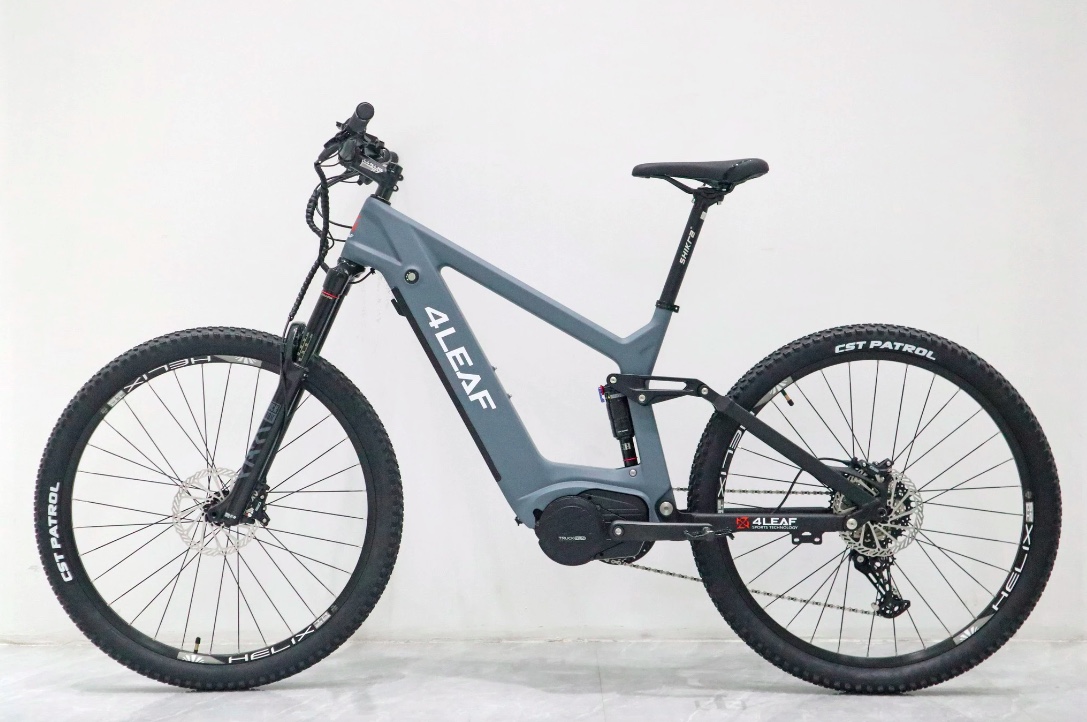

4leaf Bafang ULTRA 11 1500W speed m620 mid drive mountain electric bicycle Carbon Fibre Frame Mountain Bike

Description

BAFANG 4leaf M620 Frame Electric Bike Bafang M620 Ultra Motor 29 Ebike Bicycle Electric G510 Frame made of Carbon Fibre

BAFANG M620 /G510 motor,48v/52v 1000w 160nm

Weight 6.6kg

peak power up to 1500w

Sram G2R brake

4 piston hydraulic brake

rotor 180/203mm (180mm is recommended for eMTB)

Rockshox Yari RC

Travel 150mm

specially designed for eMTB

Rockshox Monarch RL

190x51mm

Out of stock. Not for sale from Rockshox now

SHIMANO M5100 Gear

11 speed

includingSHIMANO DEORE Cassette Sprocket 11-speed

SunRingle Helix wheel

26//27.5//29

or Mullet ebike

Category	Components	Brand	model	Specification
Frameset	frame	T700 carbon	ULTRA	19 (rear triangle by alluminium alloy)
		fork	Rockshox	Yari	travel 150mm
		shock	Rockshox	Deluxe	190L*45mm
Gear System	derailleur	SHIMANO	Deore	11 speed
Gear System	derailleur	SHIMANO	Deore	11 speed			SX Eagle
Power system	battery	Reention	Rhino 7	*17.5AH (7018650) 48v LG**
		charger	ATN	ATN3	54.6/3A, DC2.1, UL, CE, RoHS
		motor	BAFANG	M620	48V 1000W 160NM
		display	BAFANG	DPC18	TFT
Wheelset	rim	SUNRingle	Helix	Bolt axle; 29 or 275 or 279
		hub	M·tech	Bolt axle; 29 or 275 or 279
		tire	CST or INNOVA		29 or 275 or 279*2.4-2.8”
		tube	CST or INNOVA	CST or INNOVA	29 or 275 or 279*2.4-2.8”	29 or 275 or 279*2.4
Brake	brake	SRAM	G2 R	4piston hydraulic disk, 180mm
